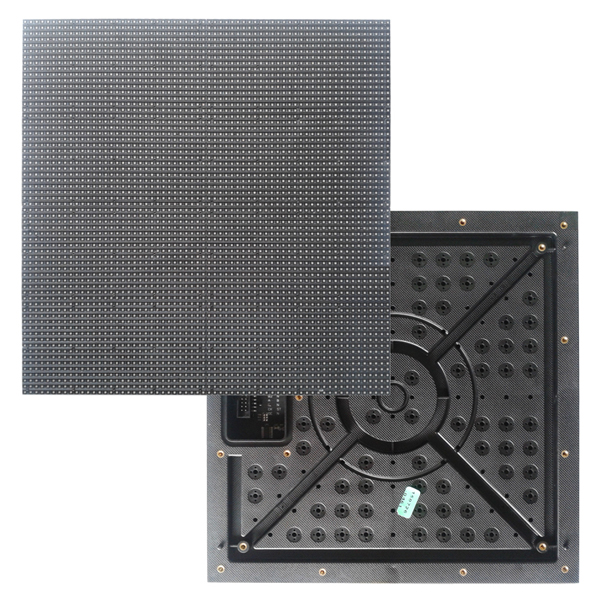

LED Module

pixel pitch

3.91mm

module size

250*250mm

module resolution

64*64 dots

LED

SMD2121

Scan

1/16scan

Application

indoor

Weight

0.3KG

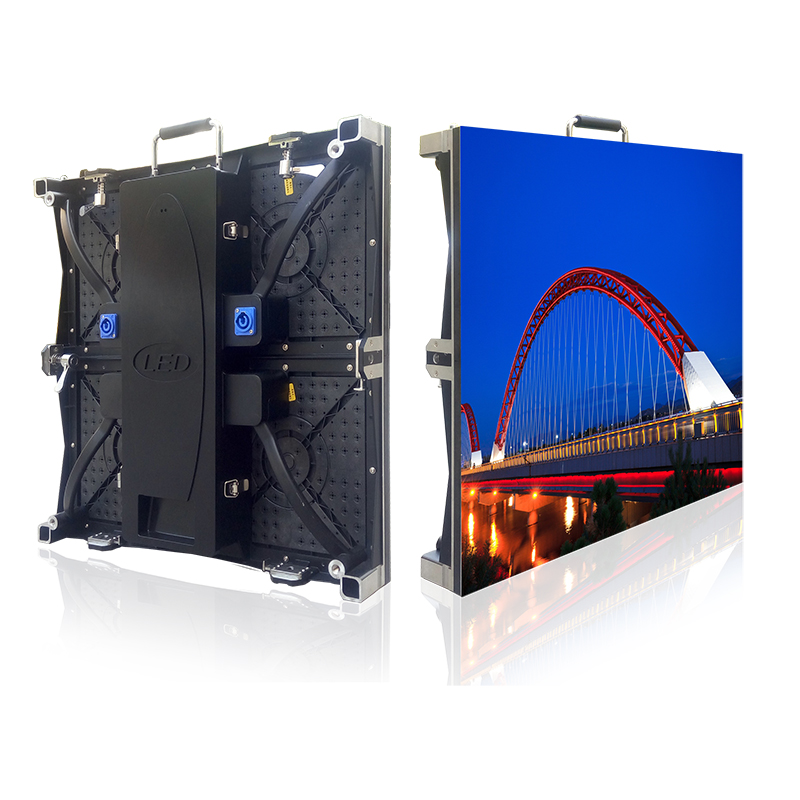

LED Cabinet

Cabinet Size

500*500mm

Cabinet resolution

128*128 dots

module quantity

2*2pcs

LED driver quantity

5V 60A

Material

die casting aluminum

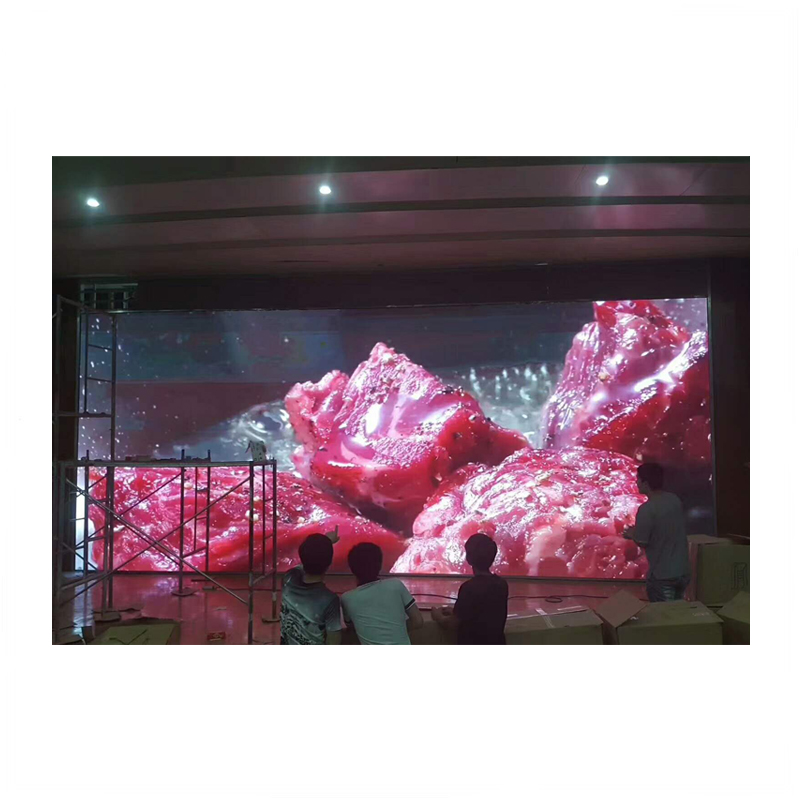

LED Screen

Pixel

65536dots/m²

Continuous Working Hours

>72 hours

Ave power consumption

350W/m²

Using Life

100,000 hours

Max power consumption

800W/m²

MTBF

>10,000H

Optimum Viewing Distance(m)

4-100m

Scatter OOC Point

<0.01%

Brightness(cd/m2)

>1200cd

Continuous OOC Point

None

Refresh Rate

1920Hz

IP Grade

IP45/IP30

LED Drive mode

Constant Current

Working Temperature

-35C----+60C

Display color

17M——69G
