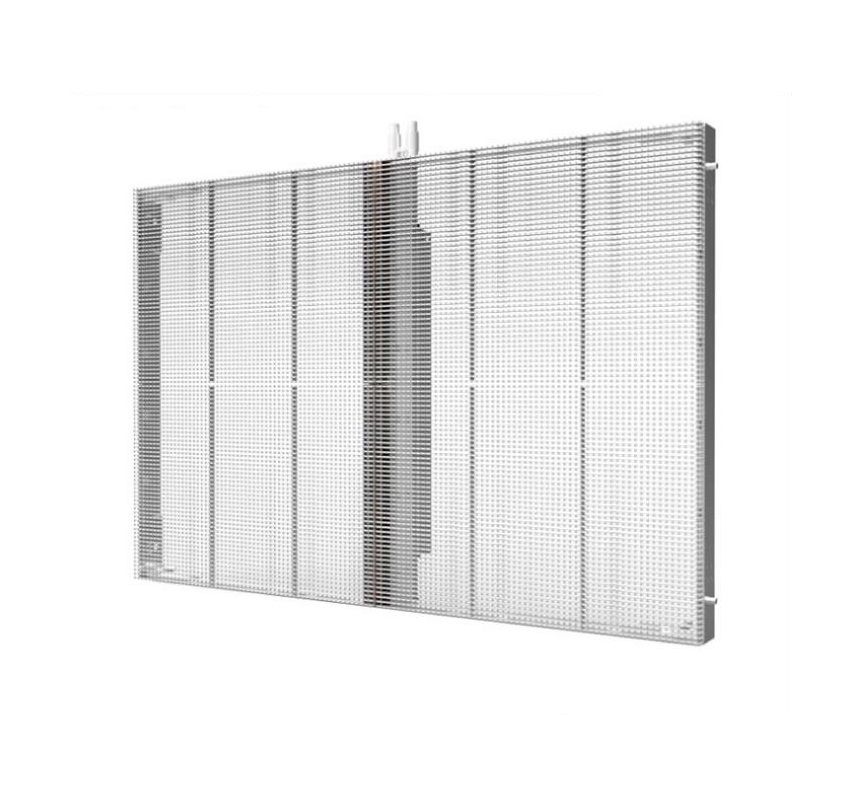

LED Pixel: P3.9-7.8; P5.2-10.4; P7.9-7.8; P10.4; P10; P5.2-7.8; P7.8. Cabinet Size: 1000*500mm
| Item | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Screen Type | Front-view LED | Side-view LED | |||||||
| Pixel | P3.9-7.8 | P5.2-10.4 | P7.9-7.8 | P10.4 | P10 | P3.9-7.8 | P5.2-7.8 | P7.8 | P10.4 |
| Cabinet Size | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm | 1000*500mm |
| Cabinet Resolution/dots | 252*64 | 192*48 | 126*64 | 96*48 | 96*64 | 256*64 | 192*64 | 128*64 | 96*48 |
| LED Package | SMD1820 | SMD1820 | SMD1820 | SMD1820 | SMD3512 | SMD3512 | SMD3512 | SMD3512 | SMD3512 |
| Module Size | 500*125mm | 500*125mm | 500*125mm | 500*125mm | 480*320mm | 500*250mm | 500*250mm | 500*250mm | 500*250mm |
| Brightness(cd/m²) | 3000 | 2500 | 3000 | 2500 | 5500 | 5500 | 5500 | 5500 | 5500 |
| Dots/m² | 32256 | 18432 | 16128 | 9216 | 10000 | 32768 | 24576 | 16384 | 9216 |
| Scan Mode | 7 | 8 | 7 | 4 | 3 | 8 | 6 | 4 | 3 |
| IC | MY9866 | MY9866 | MY9866 | MY9866 | MBI5124 | MBI5124 | MBI5124 | MBI5124 | MBI5124 |
| Transparency | 62.17% | 70.37% | 62.17% | 70.37% | 81.80% | 68.33% | 71.76% | 75.20% | 82.69% |
| Consumption (W/pcs) | 300 | 300 | 300 | 300 | 500 | 500 | 500 | 500 | 500 |
| Weight (kg/m²) | 14kg | 14kg | 14kg | 13.5kg | 11.5kg | 13kg | 13kg | 13kg | 11.5kg |
