LED Module pixel pitch 6mm module size 192*192mm module resolution 32*32 LED SMD3535 Scan 1/8scan Application Outdoor Weight 0.4KG LED Cabinet Cabinet Size 1152*960mm Cabinet resolution 192*160 dots module quantity 6*5pcs Material Sealed ir

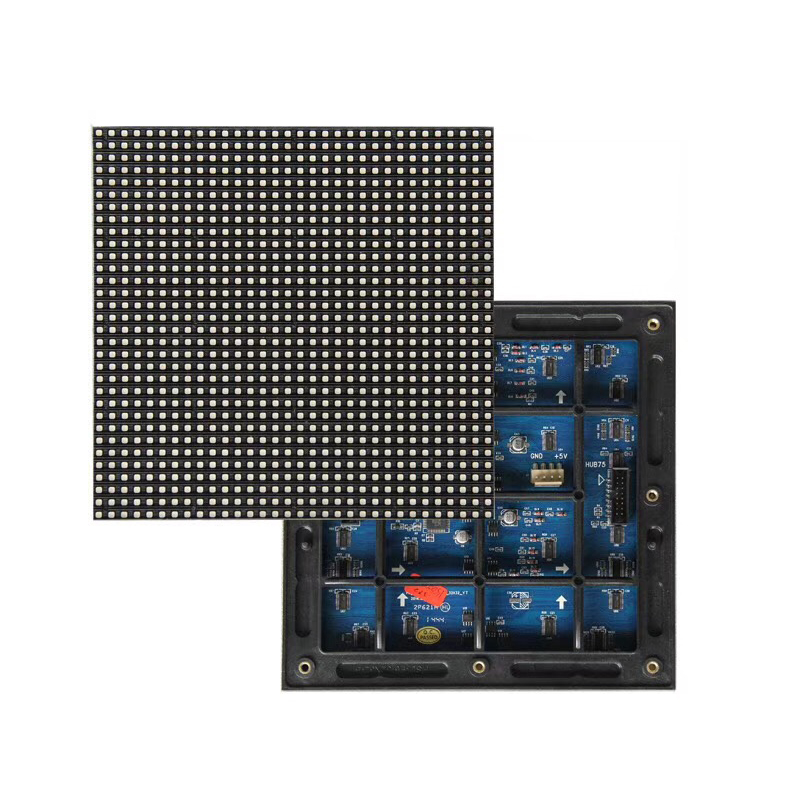

| LED Module | ||
 |
pixel pitch | 6mm |
| module size | 192*192mm | |
| module resolution | 32*32 | |
| LED | SMD3535 | |
| Scan | 1/8scan | |
| Application | Outdoor | |
| Weight | 0.4KG | |

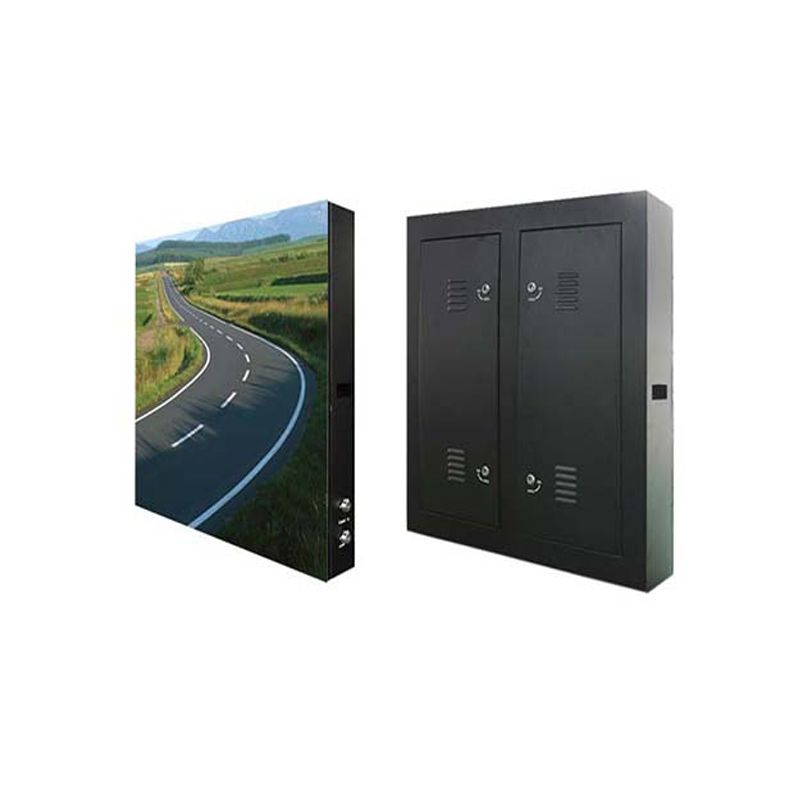

| LED Cabinet | ||
 |
Cabinet Size | 1152*960mm |
| Cabinet resolution | 192*160 dots | |
| module quantity | 6*5pcs | |
| Material | Sealed iron cabinet | |
| LED Screen | ||||
|
|
Pixel | 27777dots/㎡ | Continuous Working Hours | >72 hours |
| Ave power consumption | 500W/㎡ | Using Life | 100,000 hours | |
| Max power consumption | 1000W/㎡ | MTBF | >10,000H | |
| Optimum Viewing Distance(m) | 6-100m | Scatter OOC Point | <0.01% | |
| Brightness(cd/m2) | >6000cd | Continuous OOC Point | None | |
| Refresh Rate | 300---2440 frame/s | IP Grade | IP65/IP54 | |
| LED Drive mode | Constant Current | Working Temperature | -35C----+60C | |
| Display color | 17M——69G | Working Humidity | 10---90% | |
